The ZF41: From ZF40 to the K98k Marksman’s Sight

The Zielfernrohr 41 (ZF41, also written Zf.41) was not Germany’s precision sniper optic. It was a 1.5× long-eye-relief sight fitted over the Karabiner 98k rear-sight base so a squad marksman could keep a normal cheek weld and still see a target the naked eye could not pick up. The Wehrmacht code for the combination was Adalbert b — Adalbert was already the cover name for the K98k.

It came out of the 1939 Poland campaign, used leftover work for the failed G41 rifle, and then changed in the tube, the grease, the mount rollers and the factories that built the rifles. That is the story below.

Development: ZF40 first

Heereswaffenamt already had a short, long-eye-relief glass on the books for the Gewehr 41 semi-automatic. That sight was the ZF40. The G41 programme stalled. The optic did not.

After Poland, infantry commanders asked for a sight that would let a designated man in the Gruppe engage targets that were visible only as a smear. H.Za reused the ZF40 layout rather than wait for a new 4× sniper glass. A Merkblatt dated 26 April 1941 already shows the early tube. Official introduction of the K98k–ZF41 pairing is 14 July 1941.

Surviving ZF40 bodies were not scrapped. When they came back for overhaul, or when leftover tubes were finished for the carbine, the “40” was barred out and “41” or “41/1” was stamped beside it. Collector tallies put original ZF40 markings in the low thousands (one reconstruction uses a figure around 3,000). Many more tubes spent their service life as ZF41 or ZF41/1 after that restamp.

The sight was never meant to replace the high-turret 4× sniper K98k. Manuals treat 400 m as the practical ceiling even though the drum is cut to 800 m. Hitler wanted the glass on every rifle. Optics capacity, not doctrine, stopped that.

What the soldier actually got

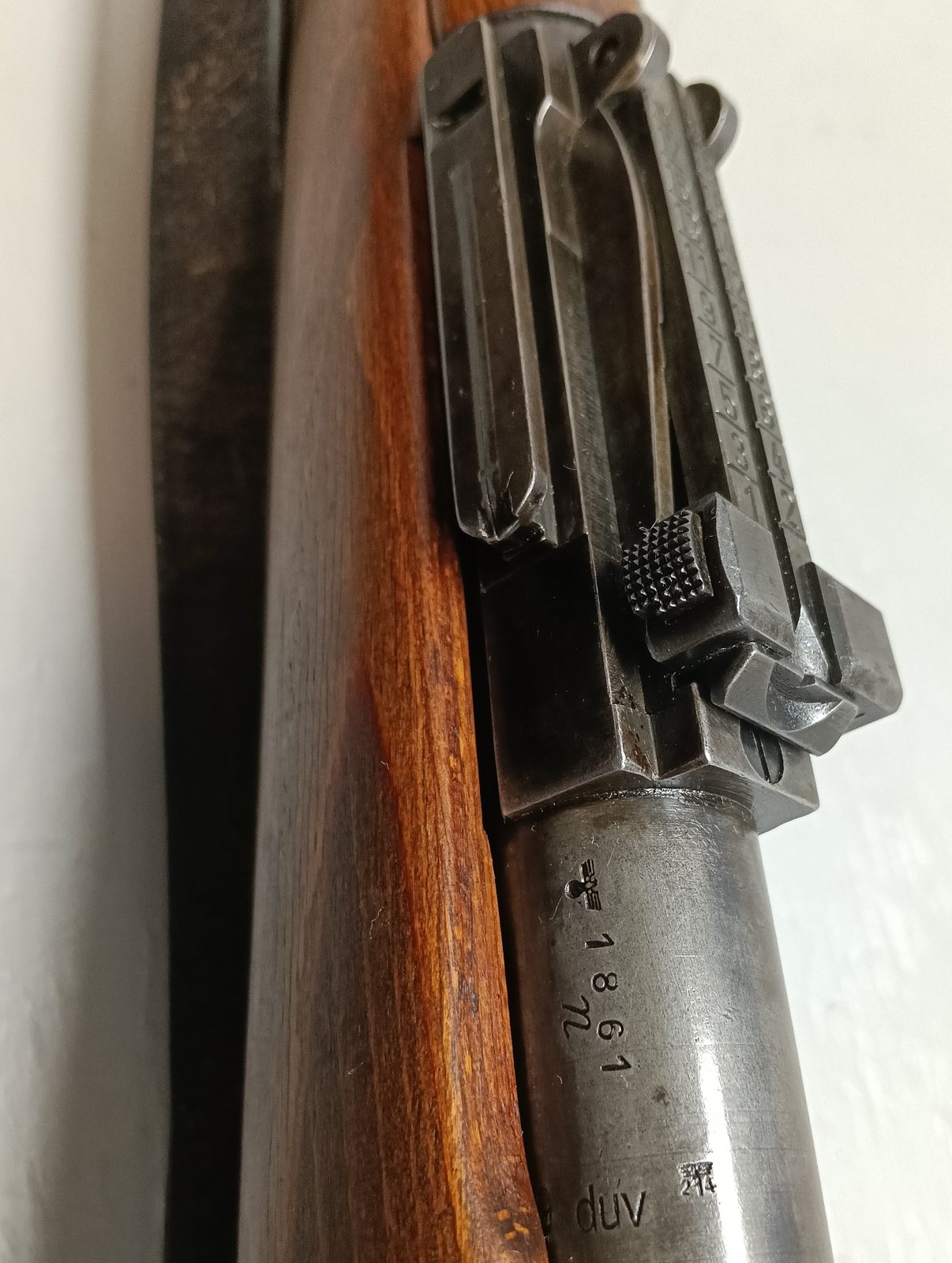

The rear leaf must be down on 100 m before the mount will clear it. Iron sights remain usable if the glass is off.

Factory rifles were not random. A carbine had to put three of five machine-rest shots into a 2 cm square at 100 m before it was pulled for a ZF41 base. That is a tight group for a service 7.92×57. Later field fittings and postwar adapter rails exist; they are not the same as a factory Adalbert b.

Changes from ZF40 / Type 1 to ZF41/1

Collectors sort the tubes into three wartime patterns. German manuals do not use “Type 1 / 2 / 3”; the names are modern, but the metal matches the dates.

Type 1 (early ZF41, 1940–mid 1942)

Slim elevation ring (about 21 mm). Objective cell about 23 mm outside diameter. Length about 131.5 mm, weight about 150 g. Optical train commonly described as 10 elements in 7 groups. Early examples may read only Z.F. or carry a commercial name (Busch Rathenow) before the three-letter code. Rain shield covers the ocular flush.

Type 2 (late ZF41, from late 1942)

Same basic innards. Elevation ring widened to about 24 mm so a gloved hand can index the 50 m detents. A leaf spring on two screws clicks into grooves on the ring.

Type 3 — ZF41/1 (from late 1942 / 1943)

Simplified train, commonly 6 elements in 5 groups. Tube a little longer (about 135 mm) and heavier (about 176 g). Objective cell about 25 mm. The ocular tube stands proud of the rear rain shield — the quick field tell. Image quality in period tests is close to Type 1; the point was fewer lenses and faster assembly.

Lubricant stamps (on the tube, not the rifle) track winter grease changes:

A tube can carry two grease marks if it went back through a depot.

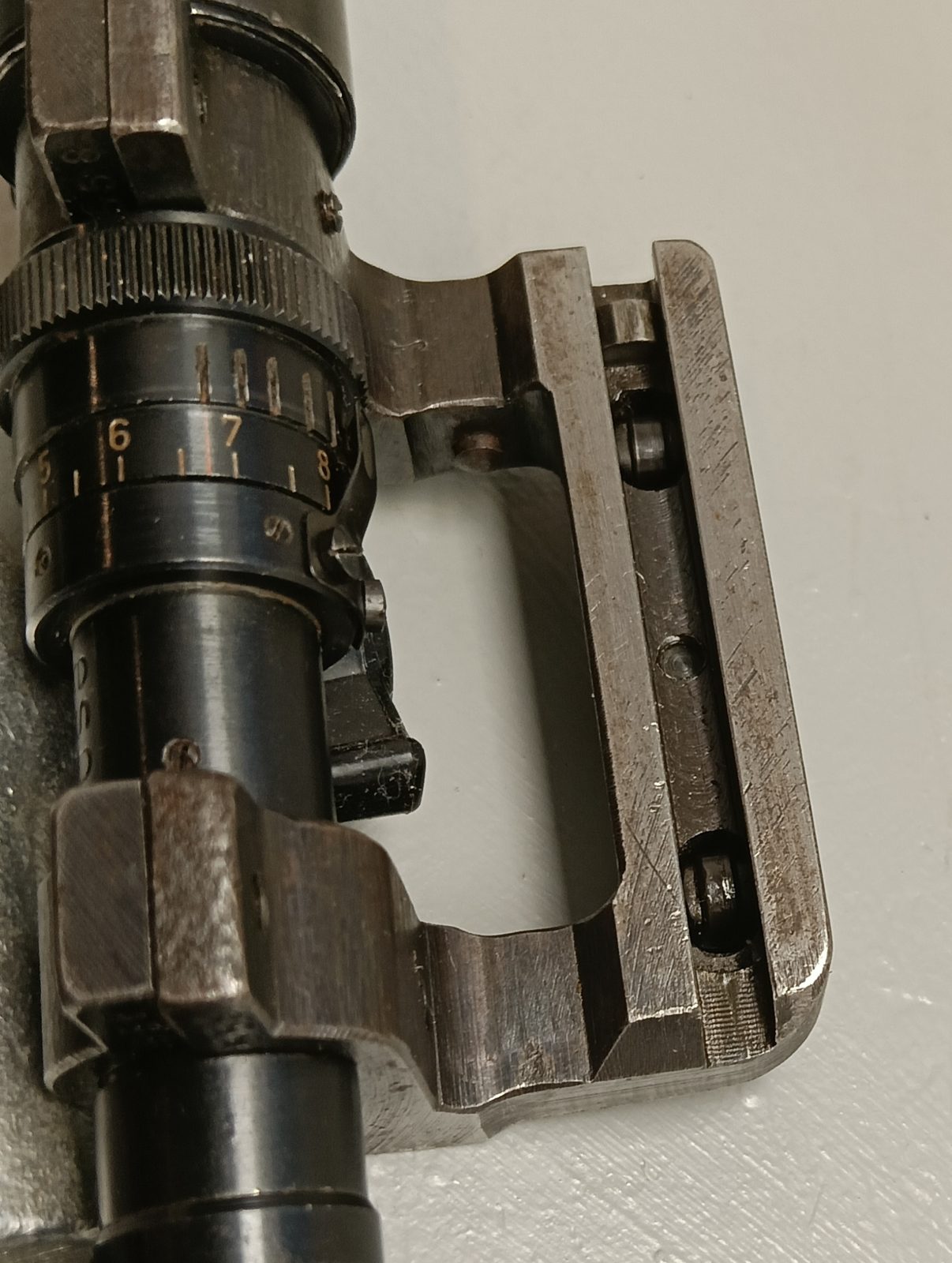

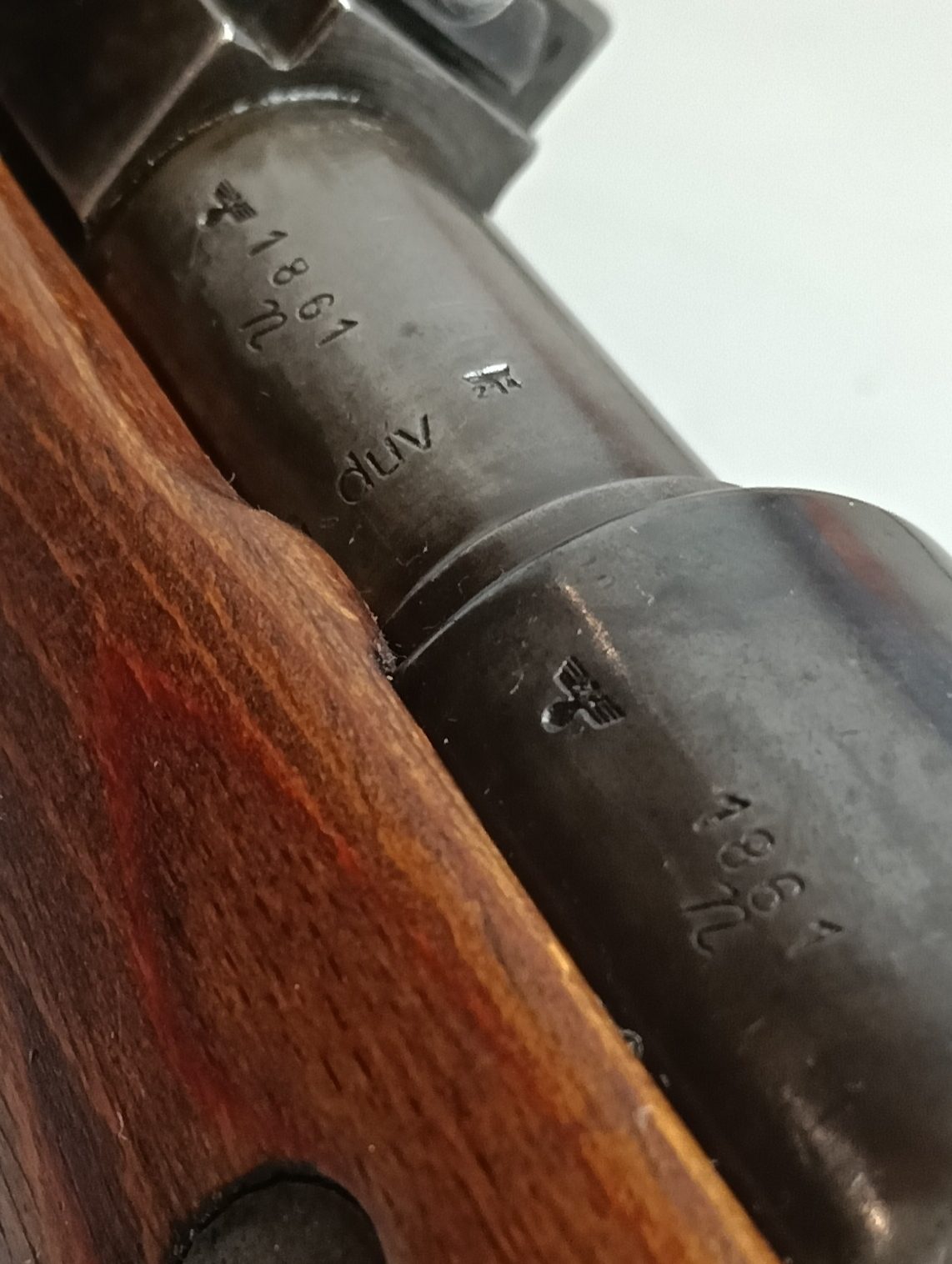

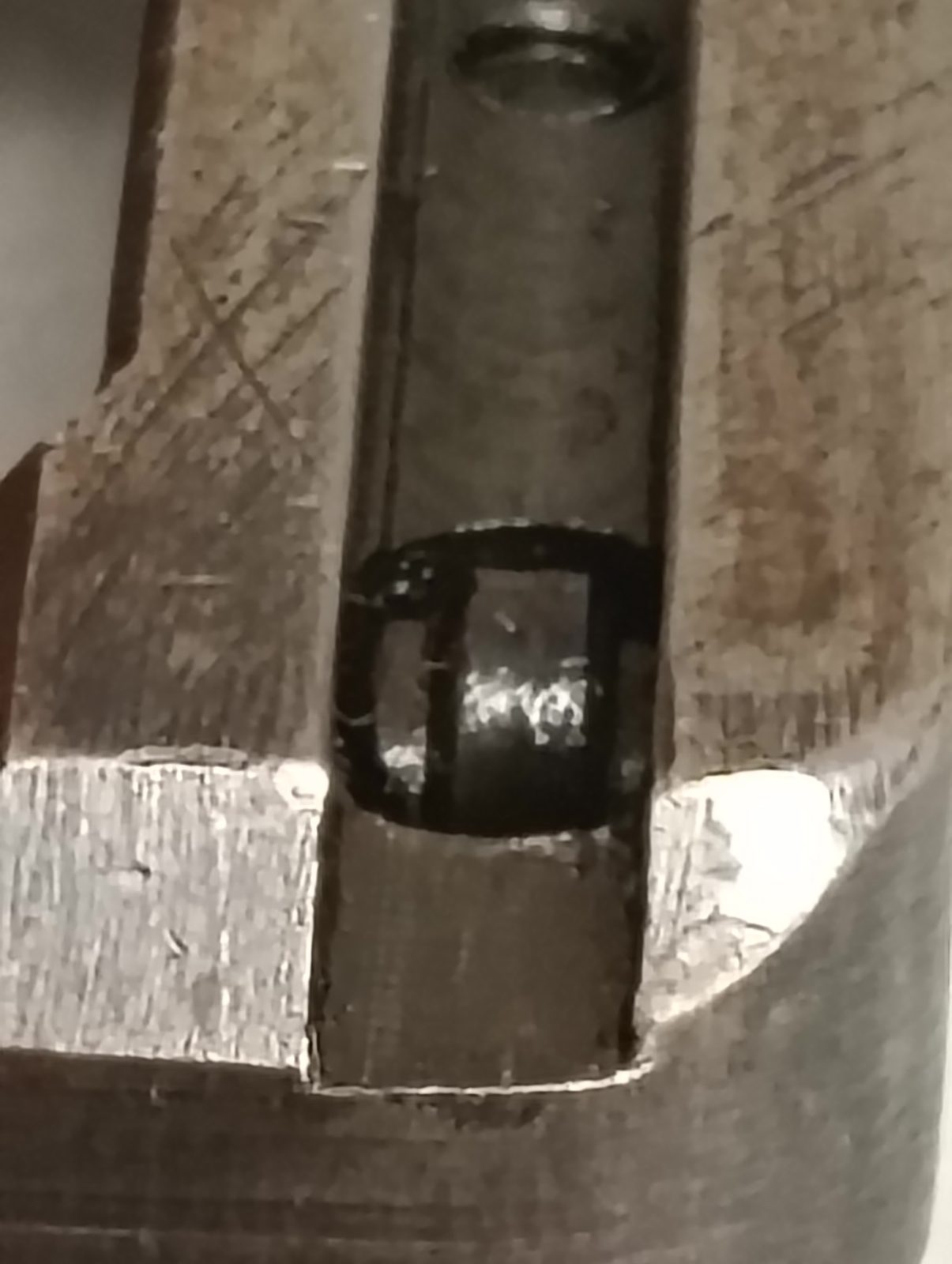

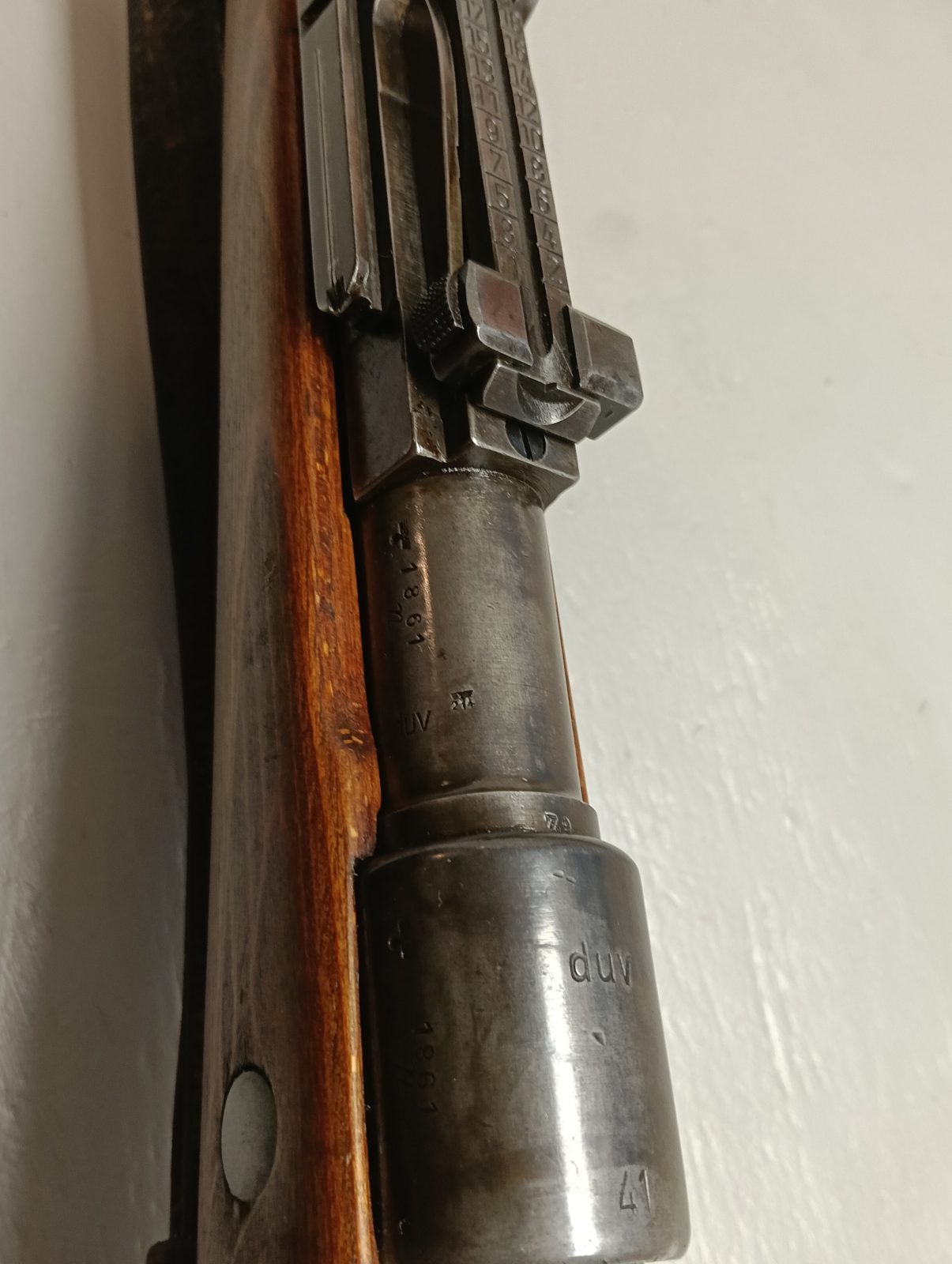

Mount rollers changed with the rifles. Early bases use flat rollers; later bases are bevelled. Berlin-Lübecker early flat-roller rifles often show e/214 on the side of the sight base; later bevelled BLM bases often do not.

Who made the ZF41 tube

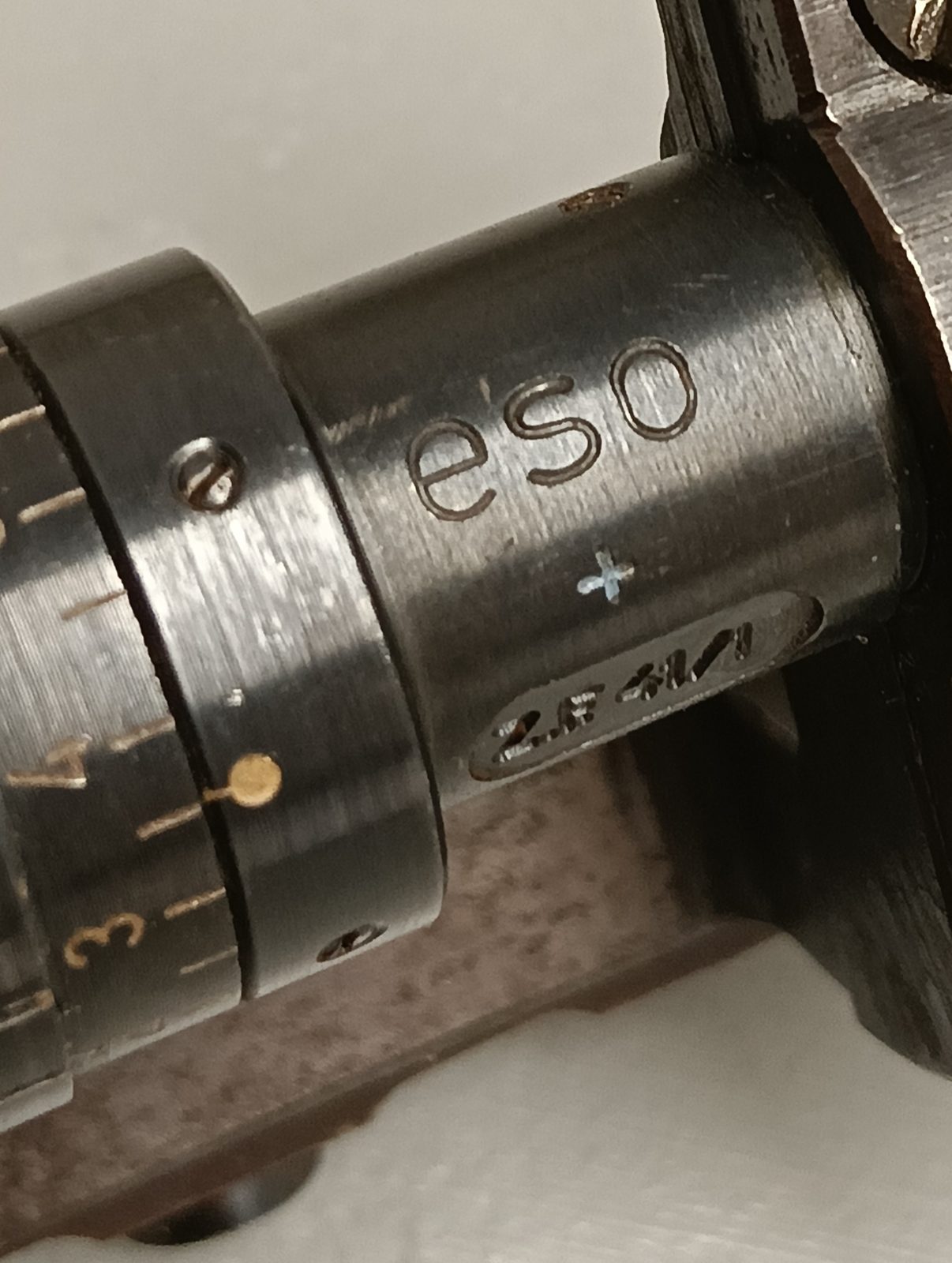

The glass was farmed out across the German optical industry and occupied plants. Serials were issued to optics in general, not to the ZF41 line alone, so a number does not date a tube by itself. Combine maker code, type, grease mark and rifle pairing.

cxn, cag and dow dominate original pairings. Reproduction tubes on the market are almost always cxn in a very high serial band (collectors flag the 970000 region; original cxn ZF41 serials are far lower).

The carrying tin is a separate contract: Wessel & Müller, Luckenwalde (jvb), WaA14 then WaA542, leather strap then webbing.

Who made the mounts

Every original wartime clamp mount is Berlin-Lübecker Maschinenfabrik. They are marked duv and e/214. BLM designed the mount and kept making it after it stopped building K98ks in 1942, feeding Mauser Borsigwalde and then Oberndorf to the end of the war.

The rail / sight base on the rifle was normally made by the rifle plant, then numbered to the gun. Typical tells:

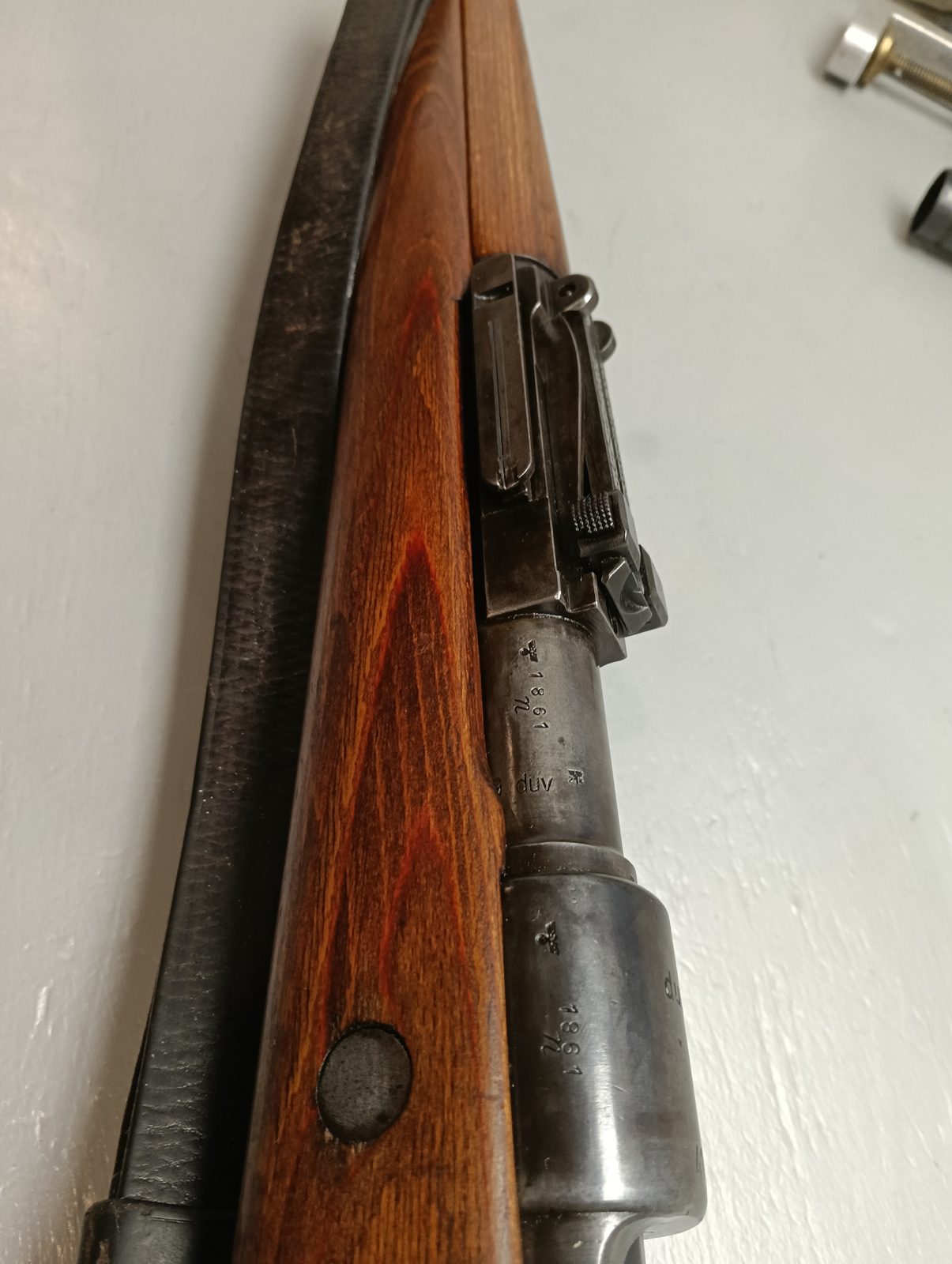

BLM (duv): four-digit rifle number on the mount; early mounts have assembly numbers on the ring sides; ring tops often unnumbered. Borsigwalde (ar): last two digits of the rifle number on the ring tops; early flat-roller mounts still show a side assembly number. Oberndorf (byf / svw): four- or five-digit numbers; last two digits on the ring tops; no side assembly number; WaA135 often on the base.

ZF41-capable K98k factories and years

A factory ZF41 K98k is not “any K98k with a rail screwed on.” Three assembly plants built the official Adalbert b. Dual-code receivers appear when another firm’s ring was used on those lines.

Not factory ZF41 lines: Sauer (ce), Gustloff Weimar (bcd) as a standalone plant, Steyr (bnz), Brünn (dot / dou / swp), ERMA (ax) except as a receiver donor to Borsigwalde. A ce 1938 or 147 rifle with a ZF41 rail is a later armourer or postwar job unless the base, screws, stock inlet and number style match a known factory pattern — and even then the three-plant rule is the default.

Oberndorf’s own books list 86,000 telescopic rifles in the war, 35,000 of them in 1944. Law and Senich warn that figure mixes high-turret sniper guns with ZF41 guns. Independent estimates for ZF41-fitted K98ks cluster around 85,000–126,000. Scope production is often put above 100,000, which is consistent with spares, G41 leftovers and depot swaps. One reconstruction used by Swiss gunsmithing sources splits roughly 29,000 as ZF41 (plus restamped ZF40) and the rest as ZF41/1. Those splits are estimates, not a surviving Heeresamt ledger.

Stock work on a factory gun includes a relief cut where the low mount meets the wood. A straight service stock with a clamped-on adapter is the later shortcut.

How it was used — and why snipers disliked it

Issue was to the Gruppenscharfschütze, not to the dedicated Scharfschütze who already had a 4× Dialytan or Zielvier on a high turret. The ZF41 let the squad keep a man who could hit a helmet line past iron-sight certainty without training a full sniper.

The complaints were structural. Eye relief is long and the ocular is only about 15 mm across, so the field is a tunnel. The mount sits on the sight base, so any knock to the leaf or the rail throws zero. Factory-selected barrels shot well; many later “anywhere rails” did not. By late 1944 the type was often treated as an ordinary carbine accessory rather than a sniper weapon. Oberndorf still built them into 1945 because the mount and the tube inventory already existed.

Identification short list

1. Tube: Z.F.41 or ZF41/1, maker code, grease mark. Barred 40 means a G41 leftover or a rebuild. 2. Mount: duv + e/214 only. 3. Rifle: byf / svw, ar (and ax/ar, bcd/ar), or duv 41–42, with a numbered base and a stock inlet. 4. Matching numbers on base, mount and tin lid. 5. Reject cxn tubes in the reproduction serial band and any rail that is a separate stamped adapter on a Sauer, Steyr or Brünn gun unless the whole story is documented.

The ZF41 is best understood as a 1941 industrial compromise: a G41 sight bolted onto the best K98ks three factories could grade, then cheapened in the glass as the war ran out of lenses. It is the ancestor of the modern scout-rifle idea only in hindsight. In 1941 it was simply Adalbert b.
